Réf : KBE Solar DB H1Z2Z2-K VDE TÜV Rheinland 62930 IEC 131

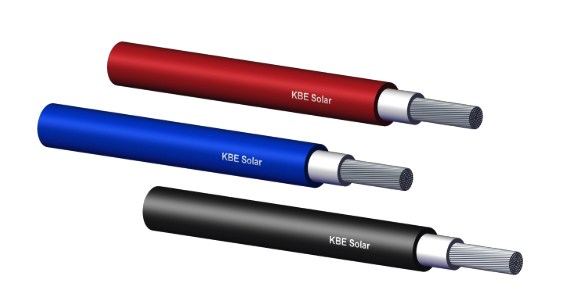

KBE Solar DB H1Z2Z2-K VDE TÜV Rheinland 62930 IEC 131

Our improved VDE+TÜV Rheinland certified solar cable "KBE Solar DB" (H1Z2Z2-K; 62930 IEC 131) also meets the requirements for solar cables for utility company projects and therefore offers you a range of additional benefits while maintaining our excellent conditions.

⚡ Propriétés et avantages

✅VDE certified acc. to EN 50618 (H1Z2Z2-K)

✅Certified acc. to IEC 62930 (IEC 131)

✅TÜV Rheinland and VDE inspection

✅1.500 VDC (max 1.800 VDC)

✅Consecutive meter marking

✅Made in Germany - 25 years service life

✅High flexibility and bendability

✅High UV stability

✅-40°C to +120°C

✅Halogen free

✅Resistant to acids and alkalis

✅Higher water resistance

✅Higher insulation resistance

📜 Certifications

✓ EN 50618 (H1Z2Z2-K)

✓ IEC 62930 (62930 IEC 131)

✓ VDE Certificate

✓ TÜV Rheinland Certificate

🔧 Applications

Photovoltaic Systems — Connection of solar modules to inverters

Utility Projects — Large-scale solar installations

Worldwide Projects — International solar projects requiring VDE certification

📊 Tableau récapitulatif

Section mm²	Conducteur n x max-Ø mm	Résistance mΩ/m	Isolation mm	Gaine mm	Ø ext. mm	Poids kg/km
2.50	50 x 0,260	8.210	0.53	0.58	5.00	45
4.00	56 x 0,310	5.090	0.53	0.58	5.40	55
6.00	80 x 0,310	3.390	0.53	0.58	6.00	75
10.00	80 x 0,410	1.950	0.53	0.58	7.10	115
16.00	120 x 0,410	1.240	0.53	0.67	8.10	170
25.00	196 x 0,410	0.795	0.71	0.75	10.50	265
35.00	280 x 0,410	0.565	0.71	0.84	12.00	370
50.00	392 x 0,410	0.393	0.80	0.92	14.50	550
70.00	343 x 0,510	0.277	0.89	0.92	16.60	725
95.00	441 x 0,510	0.210	0.89	1.01	18.30	950

📋 Fiche technique

Nominal voltage	1.500 VDC (max 1.800 VDC)
Temperature range	-40°C to +120°C
Service life	Min. 25 years (acc. to EN 50618 / IEC 62930)
Standards	EN 50618 / IEC 62930
UV stability	High (very good stability)
Water resistance	Higher
Halogen free	Yes
Chemical resistance	Resistant to acids and alkalis
Marking	Consecutive meter marking
Available colors	Black, Red, Blue
Packaging	Drums 500m & 1000m
